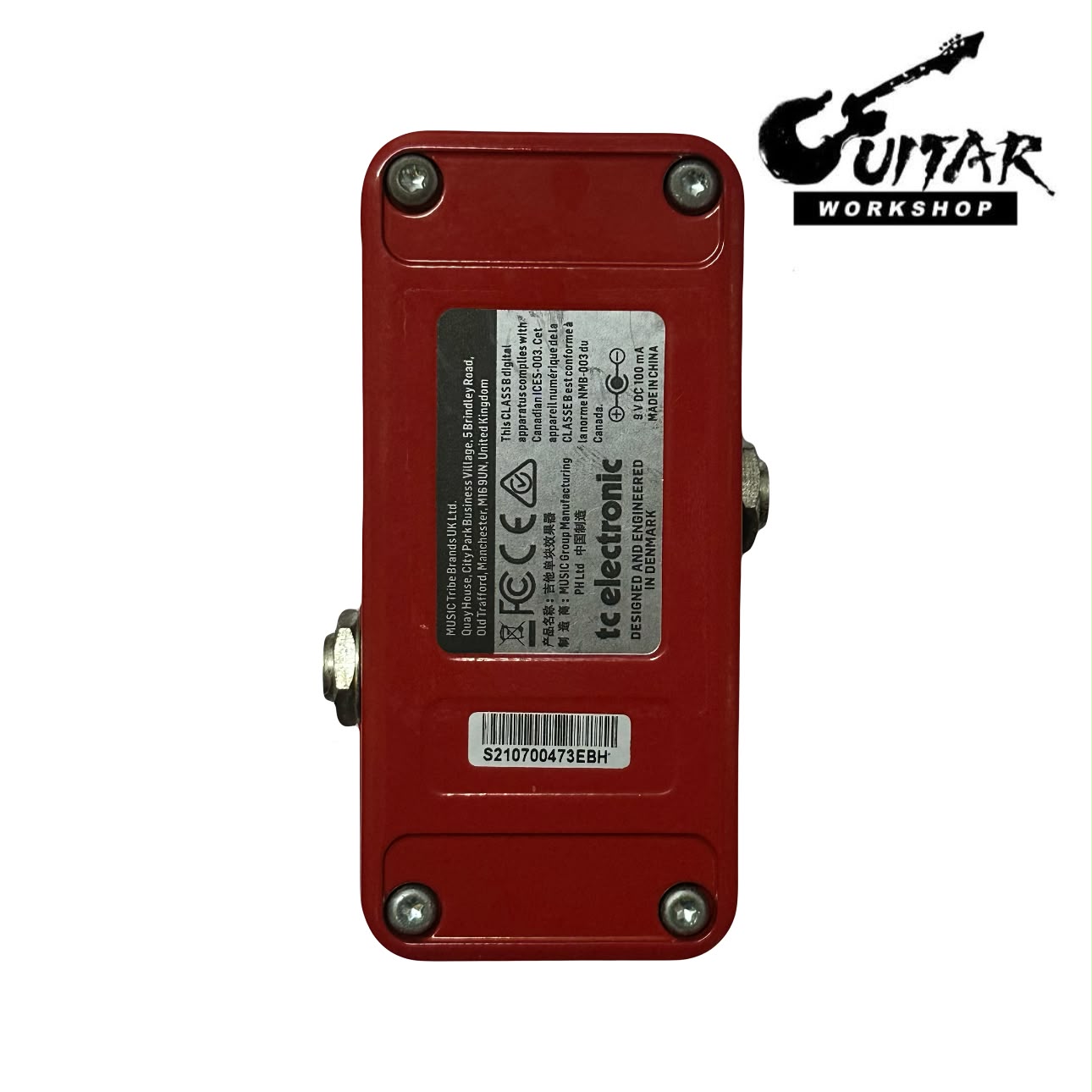

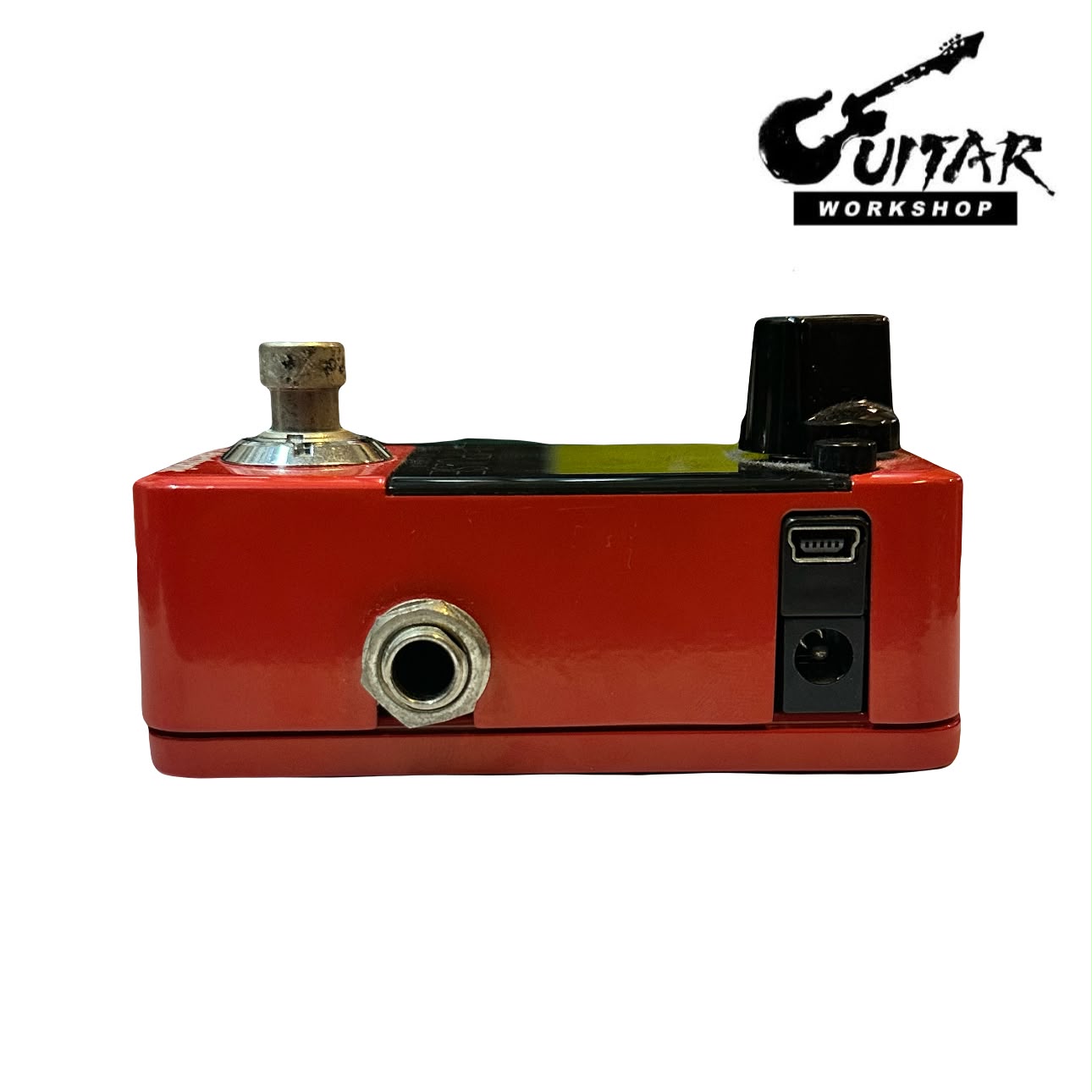

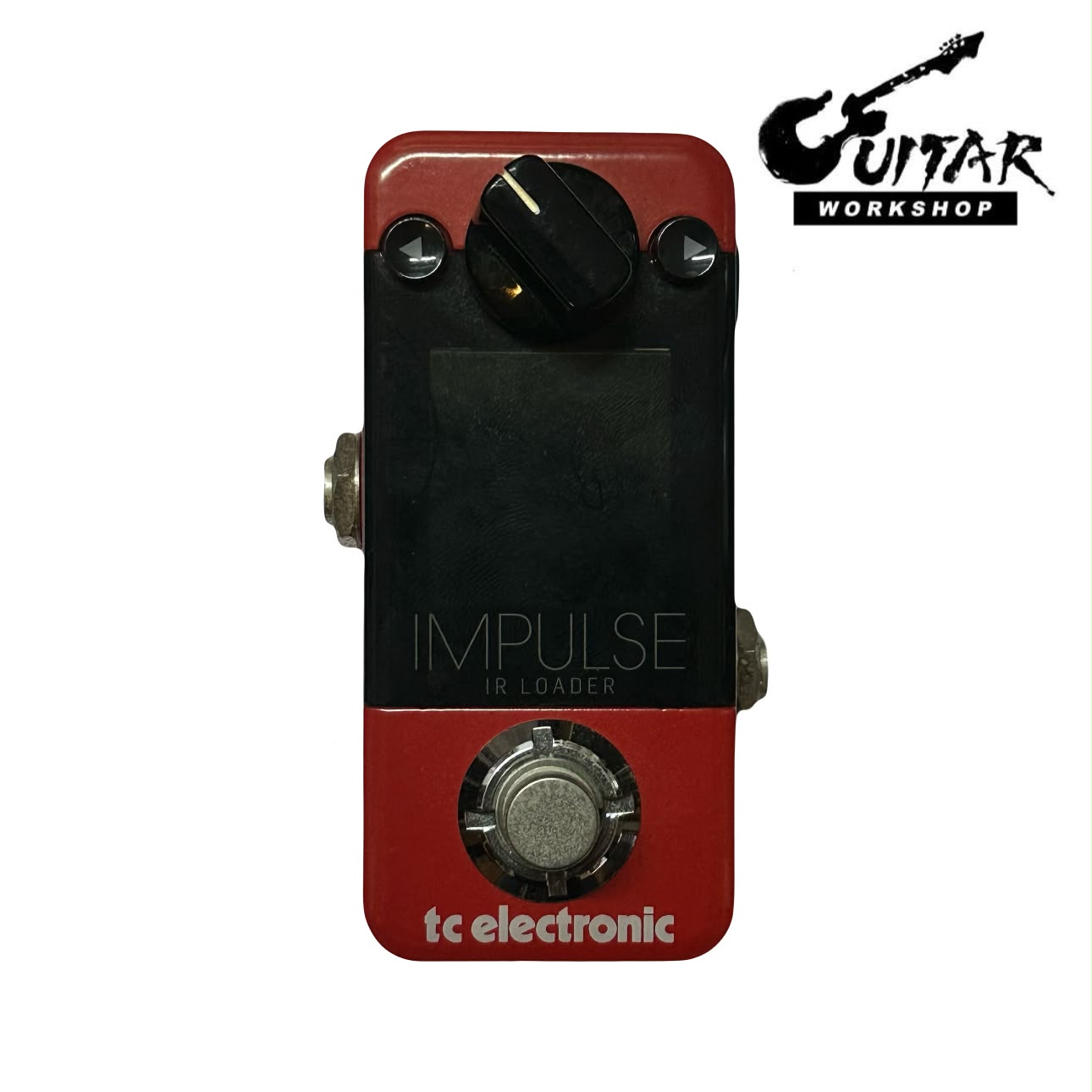

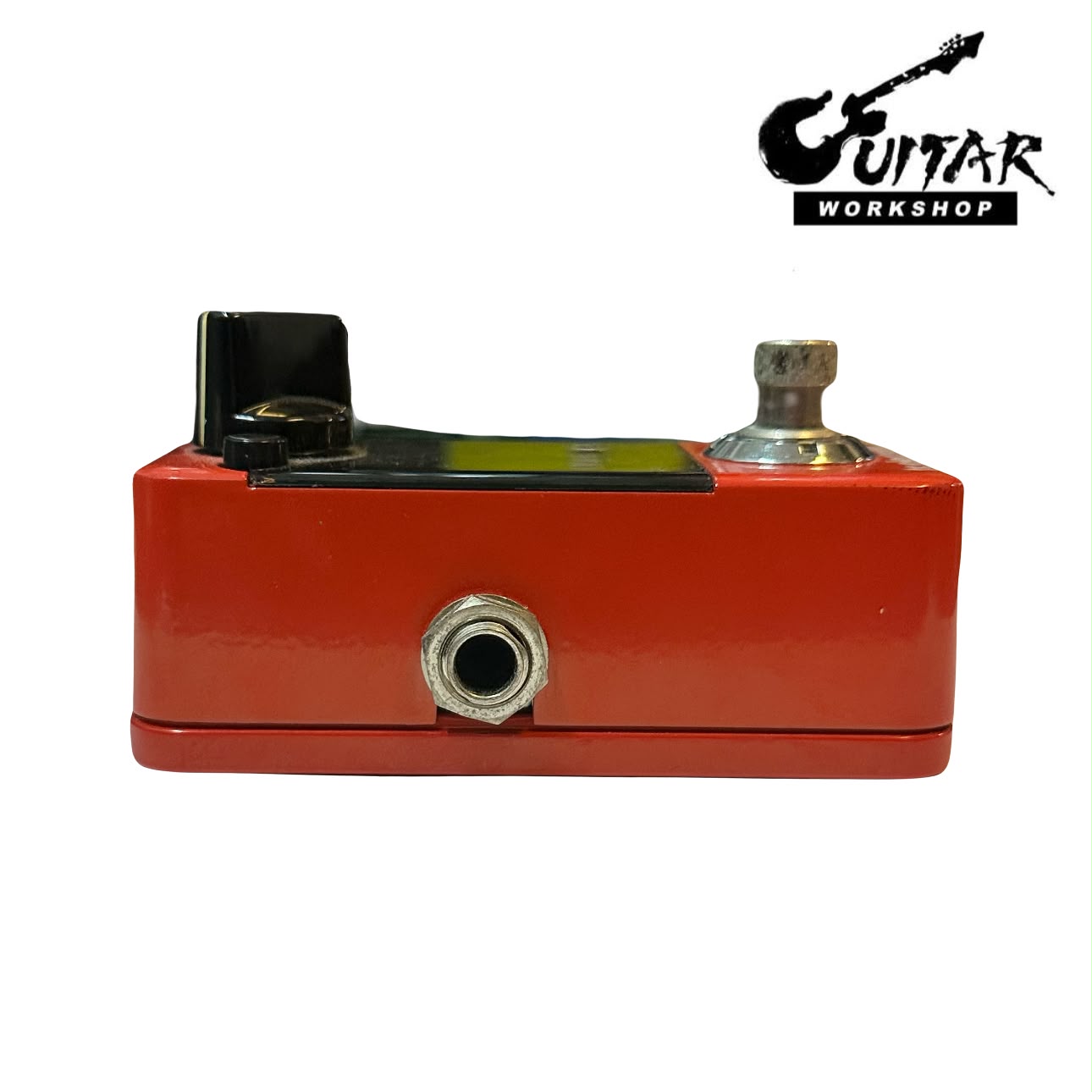

. Learn more about The TC Electronic IMPULSE IR Loader is a compact impulse response pedal designed to simulate guitar and bass speaker cabinets when connecting directly to a PA system, audio interface, or other recording equipment. It includes 25 factory IRs, 74 additional user IR slots, a built-in LCD display, and A/B switching for quickly changing between two cabinet simulations.
Condition: Good
Specifications:
Brand: TC Electronic
Model: IMPULSE IR Loader
Type: Impulse Response Loader / Cabinet Simulator
Built-In IRs: 25 Factory IRs
User IR Slots: 74
Total IR Slots: 99
Factory IRs: 12 Celestion Cabinet IRs, 8 Pedal Platform IRs, 5 Acoustic Guitar IRs
Maximum IR Length: 200ms
Supported IR Format: WAV
Supported Sample Rates: 44.1 / 48 / 96 kHz
Audio Resolution: 24-bit Uncompressed Audio
EQ: Global Low Shelf and High-Frequency Filter
Display: LCD Screen
Switching Modes: A/B IR Switching / Bypass
Controls: Output Level, IR Navigation Buttons, Footswitch
Input: 1 × 1/4″ Mono Jack
Output: 1 × 1/4″ Mono Jack
USB: Mini-USB for IR Import and Management
Power Supply: 9V DC, Centre Negative
Current Draw: Approximately 100mA
Dimensions: 93 × 51 × 50mm
Weight: Approximately 200g
Function: Speaker cabinet simulation, custom IR loading, and direct guitar signal processing
