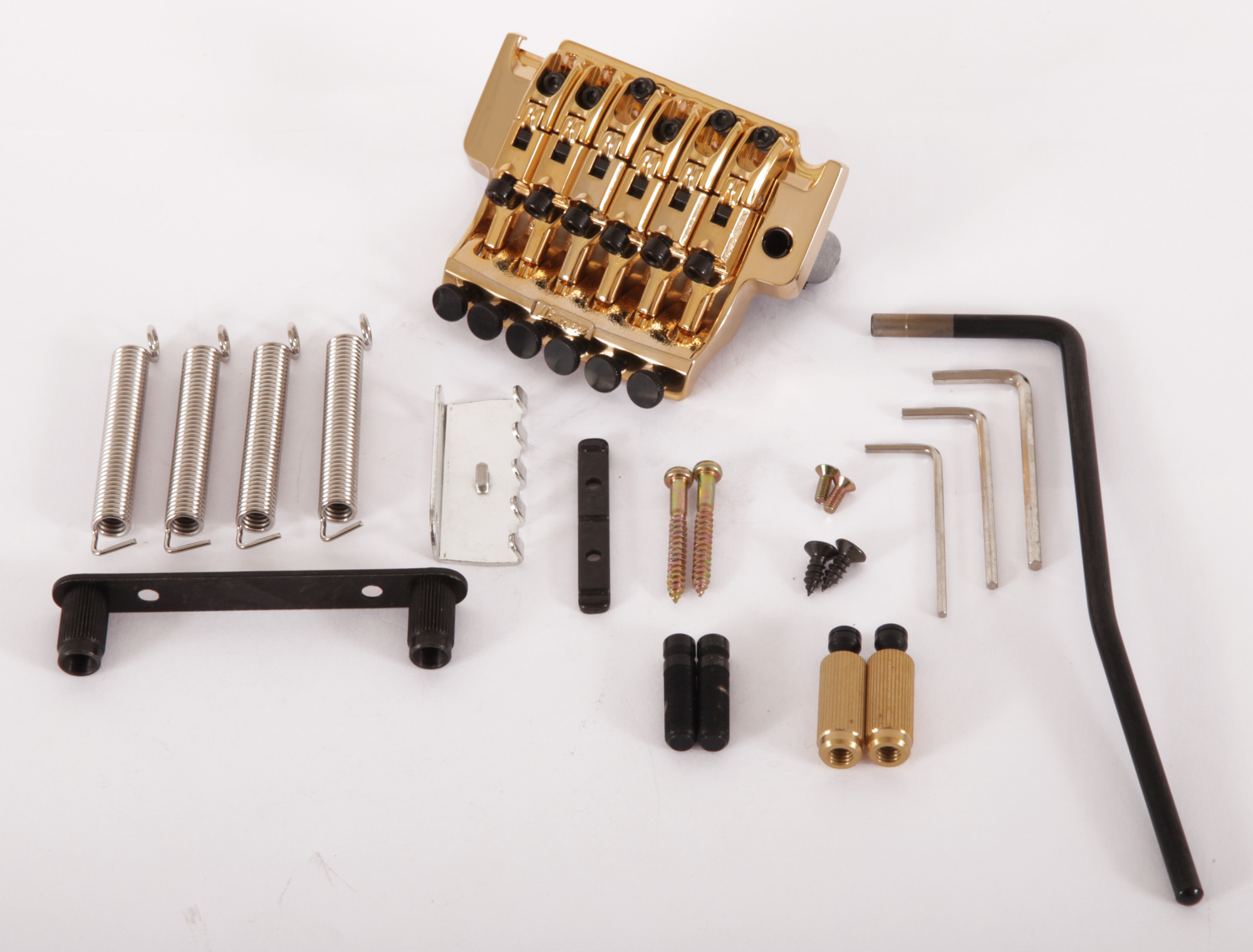

IBANEZ Tremolo Edge III in Gold-Coloured – Gold (2ED1C31GE8)

Condition:

• New

Specifications

• Type: Double-locking tremolo system

• Introduced: 2005

• Finish / Color variant: Gold (for EGEN8 version)

• Design:
   • Two knife edges riding on posts
   • Strings lock into saddles; saddle position adjustable for intonation
   • Fine-tuning via rear fine-tuners after nut locking

• Tremolo arm: Pop-in / snap-in (not screw-in standard, although a special model for EGEN8 has screw-in version)

• Arm torque adjustment: 2 mm Allen screw in side of tremolo block

• Arm height adjustment: via 3 mm Allen screws under tremolo block (from rear cavity)

• String stopper / lock bolts: locking mechanism to secure strings in saddles

• Spring system: Uses multiple tremolo springs mounted in rear cavity; spring tension adjustable; can remove or reconfigure springs to balance tremolo angle

• Height (action) adjustment: via 3 mm Allen on the stud bolts of the tremolo unit for overall unit height

• Intonation / saddle adjustment: loosen locking screw, slide saddle, re-tighten, tune, then fine-tune via fine-tuners

• Replacement parts: Knife edges, saddles, etc., follow typical double-locking designs (some parts shared with other Edge-series)

• Compatibility: Designed for EGEN8 model and similar bolt-on setups
