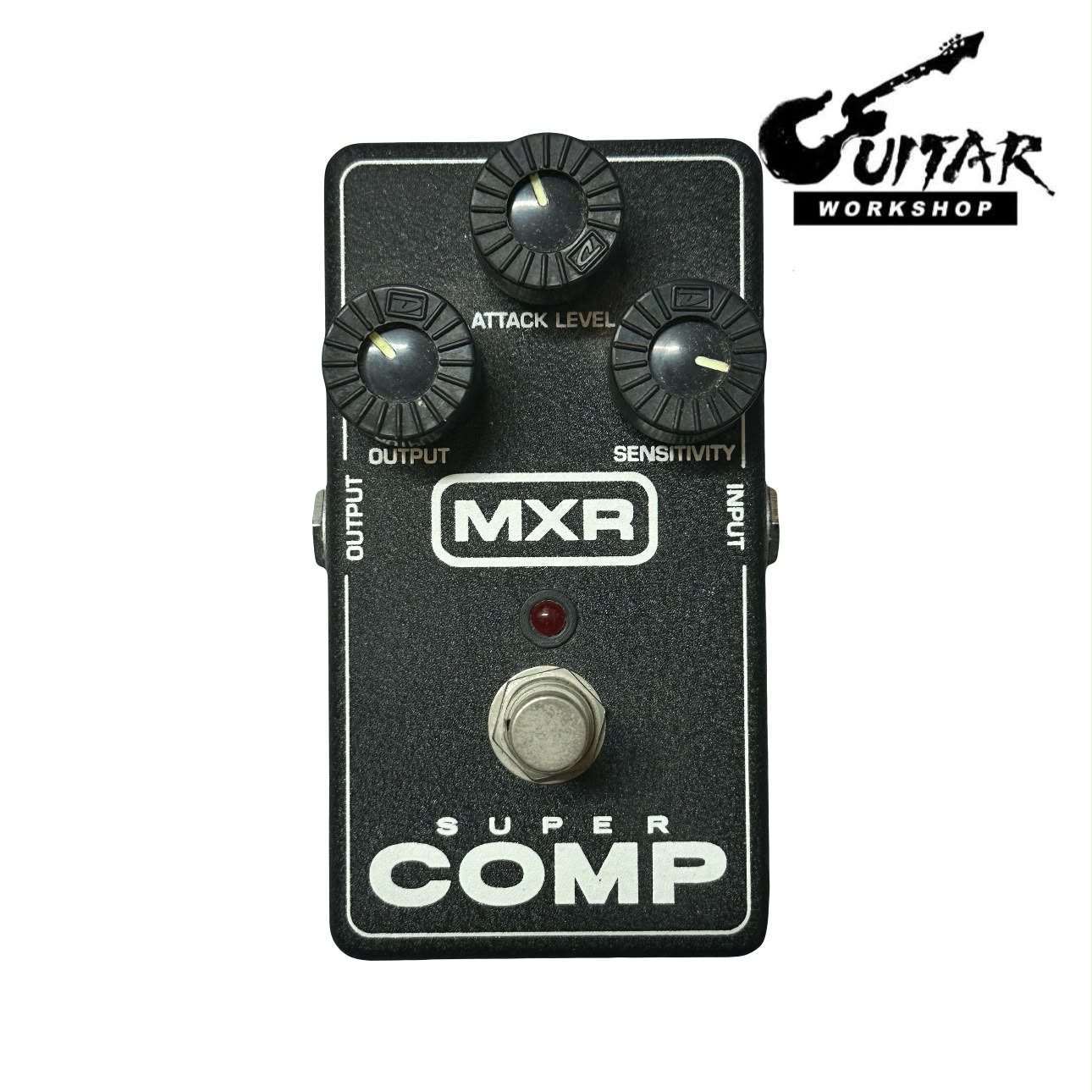

MXR M132 Super Comp Compressor

The MXR M132 Super Comp Compressor is an analog compressor pedal based on the classic Dyna Comp design. It features an additional Attack Level control to preserve the initial pick attack while enhancing sustain, making it suitable for clean tones, rhythm playing, and lead guitar.

Condition: Good

Specifications:

Brand: MXR

Model: M132 Super Comp Compressor

Type: Analog Compressor / Sustain Pedal

Controls: Output, Sensitivity, Attack Level

Maximum Compression: 36 dB

Attack Time: 5 ms

Release Time: 1 second

Input Impedance: 1 MΩ

Output Impedance: 10 kΩ

Nominal Input Level: -5 dBV

Nominal Output Level: -12 dBV

Noise Floor: -95 dBV (A-weighted)

Total Harmonic Distortion: 0.2% typical at -20 dBV, 1 kHz

Bypass: True Hardwire Bypass

Input: 1/4″ Mono Jack

Output: 1/4″ Mono Jack

Power Supply: 9V DC Adapter or 9V Battery

Current Draw: 3.3 mA

Enclosure: Die-Cast Metal

Function: Compression, sustain enhancement, and attack control
