. Learn more about The JOYO JF-24 Orthros Selector is a versatile line selector pedal featuring two independent effect loops and six selectable routing modes. It can switch between effect chains, bypass them, combine both loops, or route the signal to different outputs.
Condition:
Good
Specifications:
Brand: JOYO
Model: JF-24 Orthros Selector
Type: Line Selector / Effect Loop Switcher
Effect Loops: 2 independent loops (A & B)
Looping Modes: 6

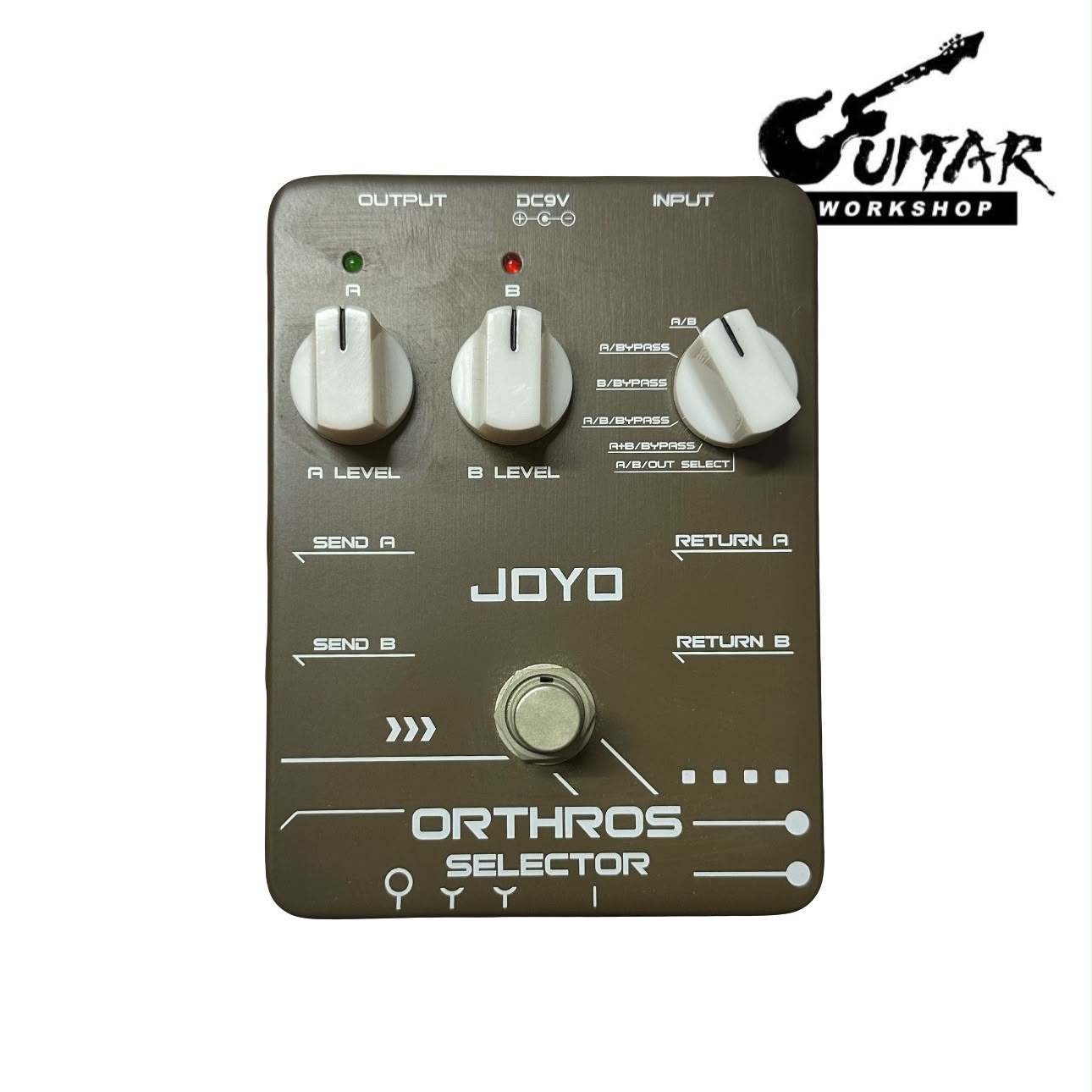

Controls: A Level, B Level, Mode Selector
Input Impedance: 1MΩ
Output Impedance: 1kΩ
Send A/B Impedance: 1kΩ
Return A/B Impedance: 1MΩ

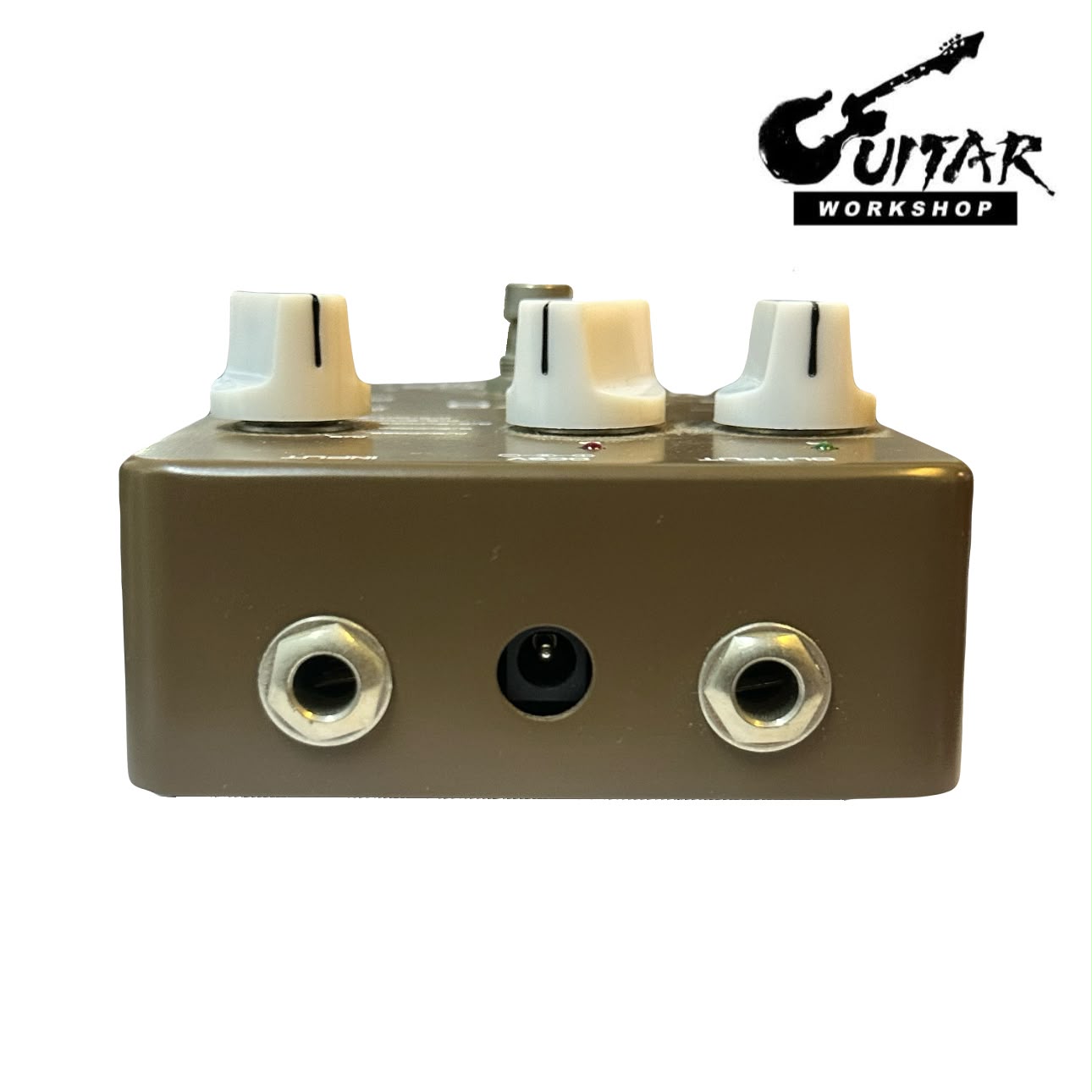

Connections: Input, Output, Send A/B, Return A/B, DC 9V
Signal Format: Analog

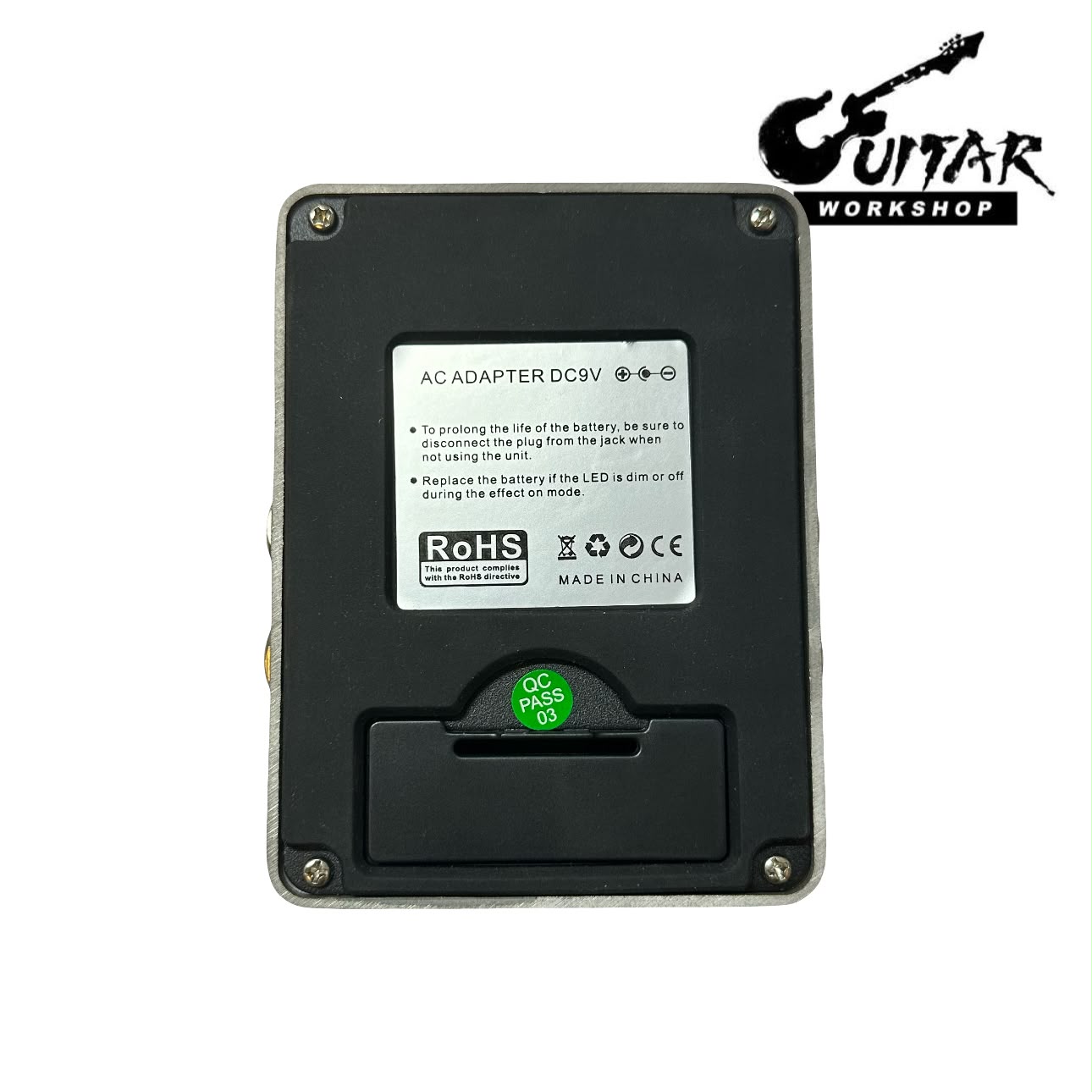

Power: DC 9V Center Negative / 9V 6F22 Battery
Current Draw: 22mA
Dimensions: 120 × 97 × 55mm
Weight: Approx. 336g
