Boss PSM-5 Power Supply & Master Switch Electric Guitar Pedal

$89.00

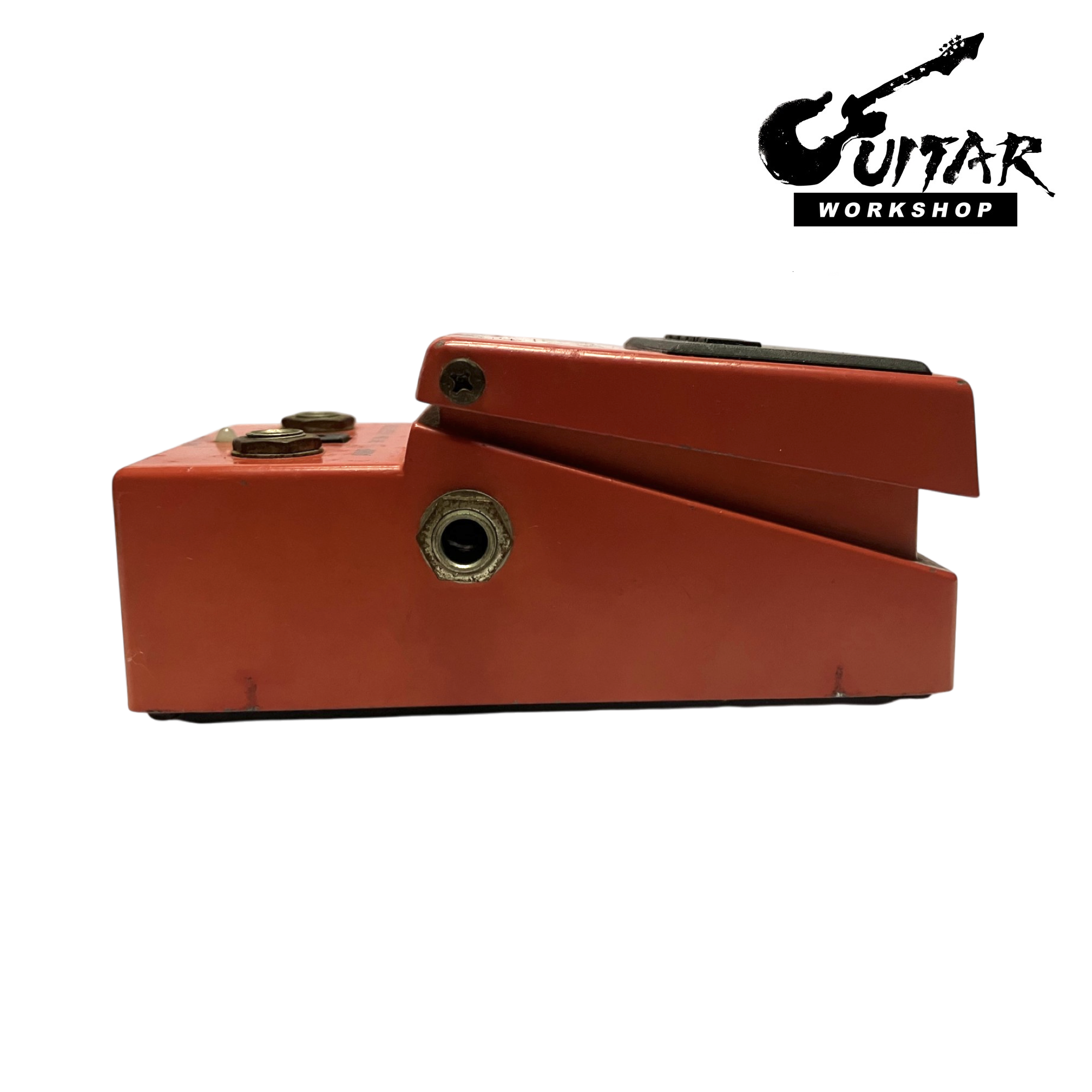

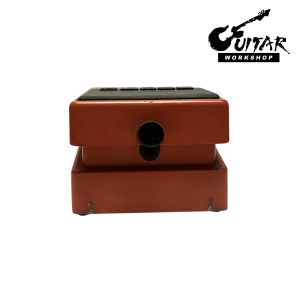

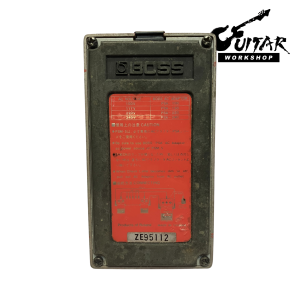

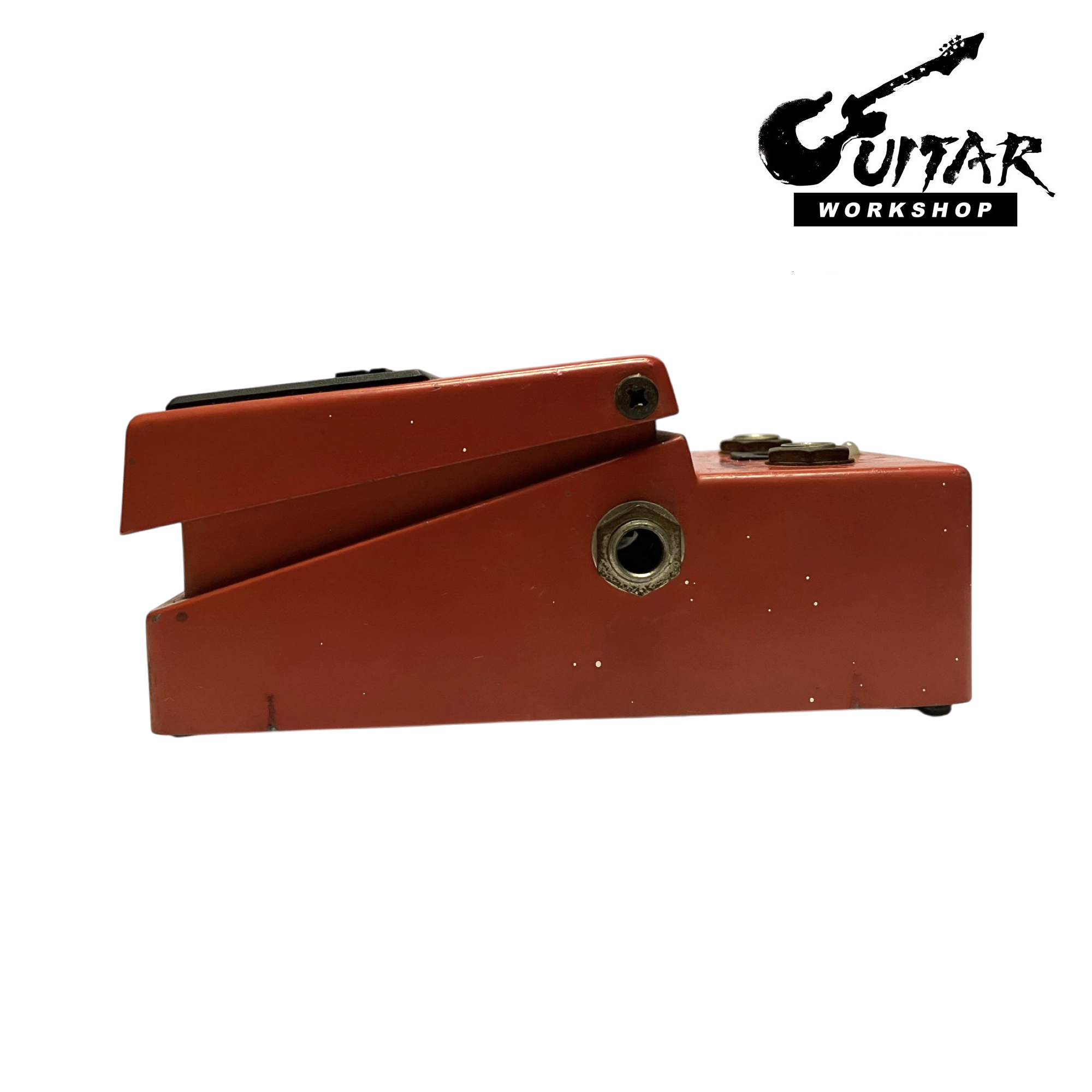

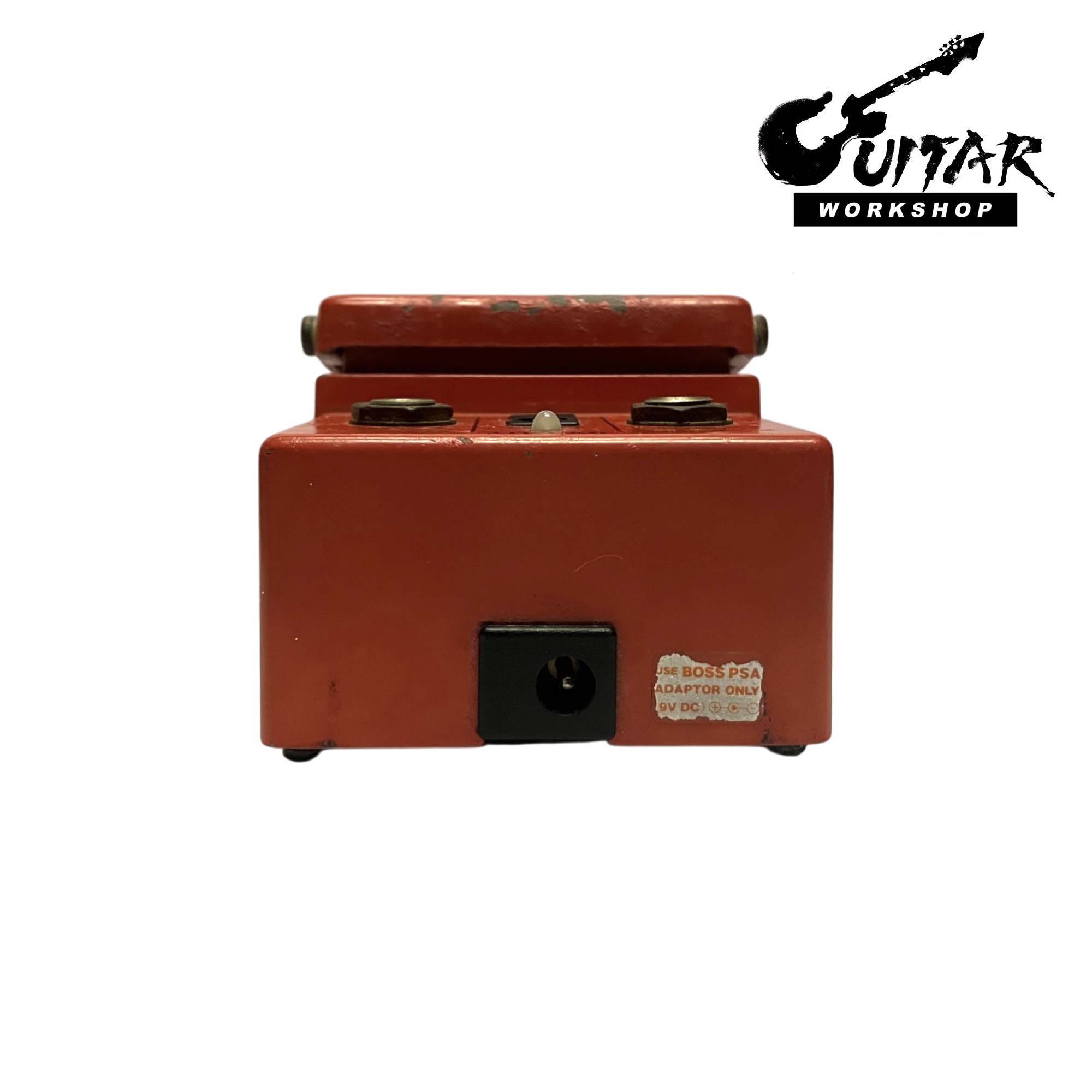

The BOSS PSM-5 Power Supply & Master Switch is a vintage pedalboard utility unit designed to combine power distribution, signal routing, and master switching in a single BOSS compact enclosure. Originally intended for use with the BCB-6 pedalboard system, it can power up to seven compatible 9V effects while providing Guitar, Send, Return, and Amp connections for controlling an effects loop.

Get 15% Cashback and split your payment with . Learn more about Fave.
- +
Guaranteed Safe Checkout

Condition:

  • Good

Specifications:

  • Brand: BOSS
  • Model: PSM-5 Power Supply & Master Switch
  • Type: Pedalboard Power Supply / Master Switch / Signal Router
  • Era: 1980s–1990s
  • Country of Manufacture: Taiwan
  • Power Supply: 9V DC, 200mA
  • Current Draw: 13mA
  • Power Output: 9V DC for up to 7 compatible effect units
  • Switching System: FET switching
  • Gain: Unity
  • Frequency Response: 10Hz–100kHz (-3dB)
  • Input Impedance: 1MΩ (Guitar / Return)
  • Output Load Impedance: 10kΩ or greater
  • Connections: Guitar Input, Amp Output, Send, Return, AC Adaptor Input, 9V DC Output
  • Function: Master ON/OFF switching and effect-loop routing
